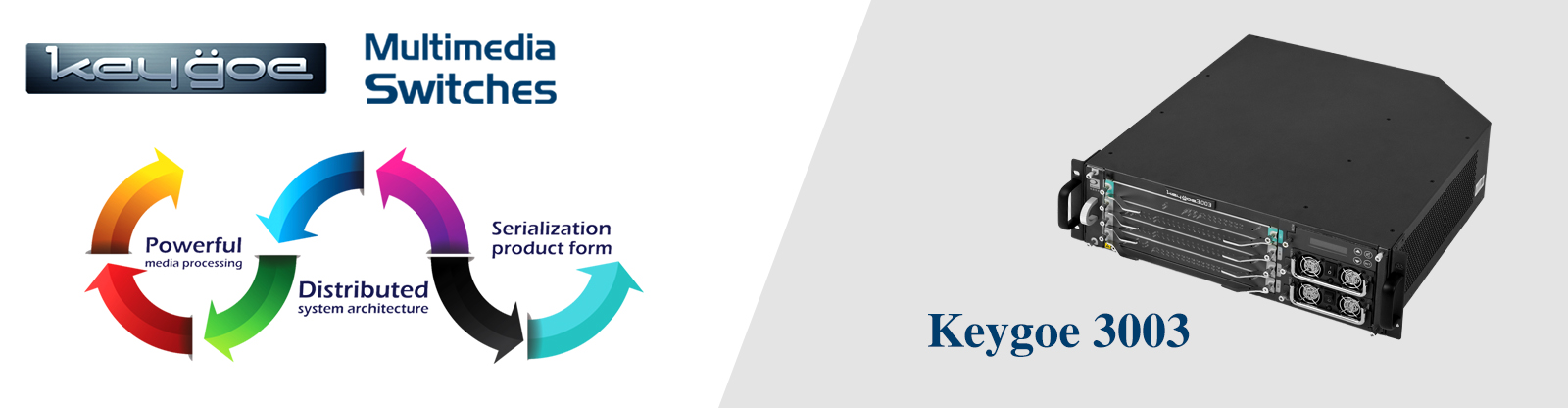

Keygoe3003


 Parametrs .NO
  • 3service slots
  • (A maximum of 3 common signaling processing boards can be inserted (16 E1s for each board
    (A maximum of 3 analog interface boards can be inserted (30 channels for each board
    (A maximum of 3 digital phone recording boards can be inserted (30 channels for each board
    A maximum of 1 fiber channel exchange matrix board can be inserted
  • 1exchange control slot
  • A maximum of 1 network exchange board can be inserted
    A maximum of 1 fiber channel exchange matrix board can be inserted
4slots   1
  • A maximum of 2 device system power modules can be inserted
  • A maximum of 1 ring power module can be inserted
2power module slots 2
  • A maximum of 48 E1 digital trunk interfaces can be configured
  • A maximum of 90 analog agents can be configured
  • A standalone Keygoe3003 can provide a maximum of 1440 voice resources
  • A maximum of 96 SS7 links (64 kbps) can be provided
  • A maximum of 12 SS7 links (2Mbps) can be provided
  • A maximum of 24 SS7 links (2Mbps in high-impedance monitoring mode) can be provided
  • A standalone Keygoe3003 can provide a maximum of 1440 VoIP resources
  • A standalone Keygoe3003 can provide a maximum of 768 conferences with 1440 members in conference simultaneously
  • A maximum of 360 fax resources can be provided
  • A maximum of 90 recording resources for digital phones can be provided
  • A maximum of 180 3G video resources can be provided
 Capacity 3
  • 16
Stacking count  4
  • Height: 130.5 mm (3U); width: 482.6 mm (19″); depth: 430 mm
 Size 5
  • AC: 220VAC range: 176–264 VAC; frequency: 50 Hz
  • DC: -48V range: -36V,-72V
 Power 6
  • The port number can be increased linearly
  • Support the device stacking
  • Support the functional board hot swapping, and online extension
Extensibility  7
  • Chassis temperature
  • Fan rotating speed
  • Power state
System monitoring alarm  8
  • High-Efficient cooling passage design
  •  3cooling fans in low noise with large exhaust
 Cooling system design 9
  •  2main power hot standby
  • Dual-Power inputs redundancy
  • Network exchange board interface redundancy
  • Hot standby for control server
System redundancy  10
